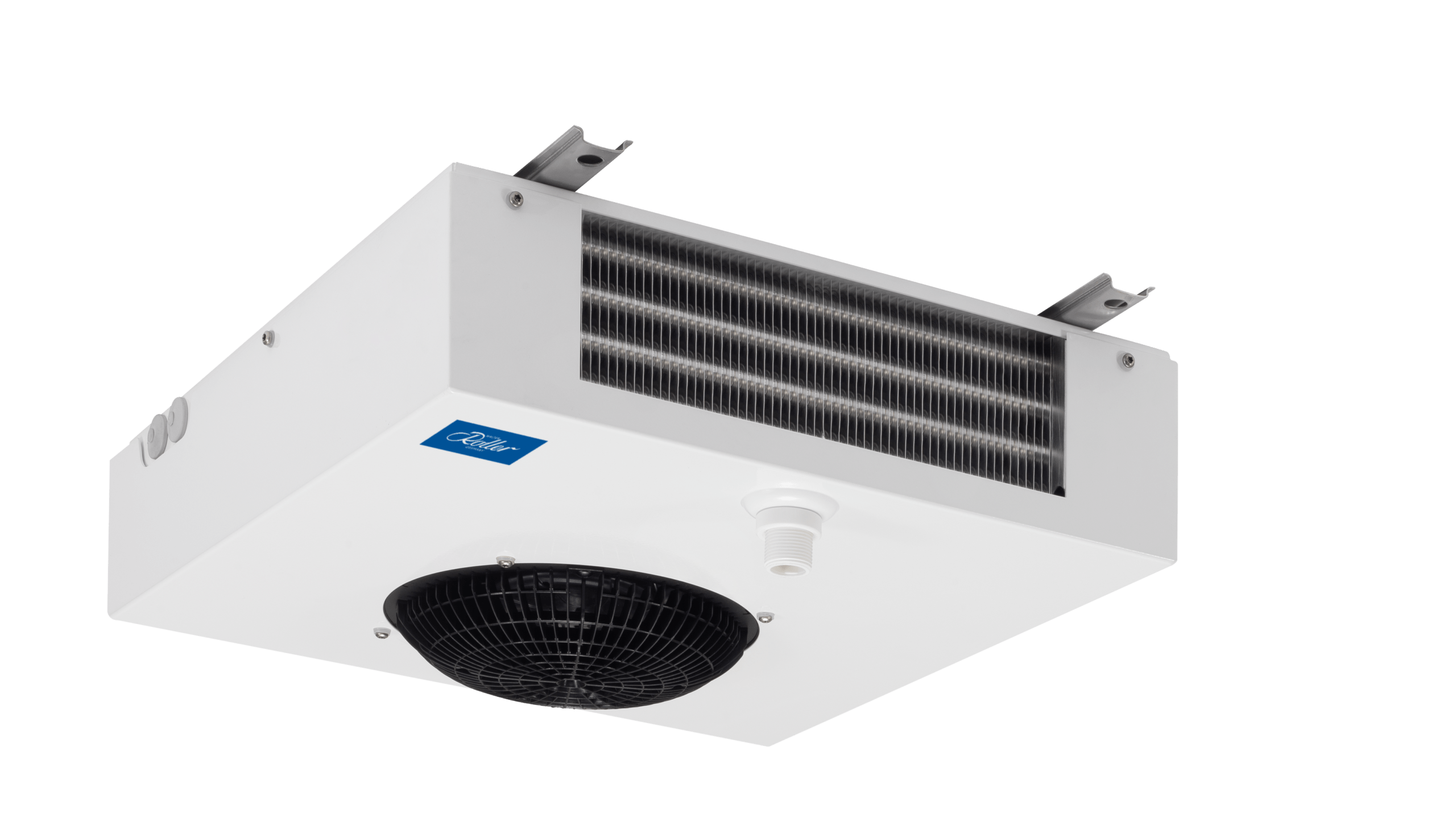

Walter Roller FKN Evaporator 4.0 mm

The Walter Roller FKN evaporator is specially designed for small, walk-in cold rooms. With its full corrosion protection coating, it is particularly suitable for the hygiene requirements relating to fresh food. The high-performance diagonal fan allows extended cooling phases with uniform air distribution in the cold room.

Roller FKN Evaporator Spec:

• Cooling capacity from 0.2 to 2 kW
• Temperature range: FKN: 0 ° 40 °C / FKNT: -35 ° 40 °C 4 and 6 mm fin spacings
• Defrosting: Electric and hot gas
• Operating pressure up to 25 bar/ 80 bar with CO2
• Easy assembly Roller

FKN Evaporator Features:

• Easy access via hinged fan plate, completely removable
• Very flat stainless steel hanging rails
• Drain heating can easily be retrofitted/replaced
• Heating rods and fans wired to terminal box
• Additional drip pan for vertical installation Inspection and cleaning
• Hinged / removable fan plate with drip tray for easy installation and cleaning
• Smooth surfaces for easy cleaning
• Heat exchanger can be cleaned from two sides
• Energy efficiency Diagonal fan for a constant cooling power in spite of frost formation
• Optimized, offset tube system for maximum heat transfer
• EC fans for energy-efficient operation as standard
• Adjustment of the air volume flow according to the cooling load via external controller (0 – 10 V)
• Corrosion protection
• Corrosion-resistant aluminium housing with scratchproof powder coating
• Heat exchanger with special corrosion protection lacquer
