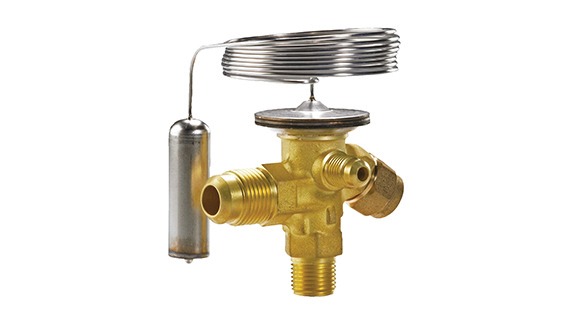

Danfoss T2 Expansion valve

Name: Danfoss T2 Expansion valve
Brand: Danfoss
SKU: D7A8E1B3
Availability: InStock

Plays video

The Danfoss T2 thermostatic expansion valves provide efficient control of the injection of refrigerant liquid into evaporators in food retail refrigeration applications.

The injection is controlled by the refrigerant superheat. Therefore, the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.

T2/TE2 valves for special temperature ranges required by your specific supermarket installation can be supplied.

Danfoss Expansion valve features and benefits:

Fast and easy to install
Wide temperature range
Interchangeable orifices assembly
Available with Maximum Operating Pressure
Long service life and easy maintenance

Video:

Thermofrost Cryo is an official distributor of Danfoss expansion valves.

CODE	catalogue	product-model	equaliser	inlet	outlet	refrigerant	Price
DAN100		TX-2-(N)	-	3/8FL x 1/2ODS	Internal	R22	£84.00
DAN102		TX-2-(N)	-	3/8FL x 1/2FL	Internal	R22	£84.00
DAN125		TN-2-(N)	-	3/8FL x 1/2ODS	Internal	R134A	£68.00
DAN130		TN-2-(N)	-	3/8FL x 1/2FL	Internal	R134A	£68.00
DAN151		TS-2-(N)	-	3/8FL x 1/2ODS	Internal	R404A	£68.00
DAN150		TS-2-(N)	-	3/8FL x 1/2FL	Internal	R404A	£68.00
DAN152		TS-2-(NL)	50	3/8FL x 1/2ODS	Internal	R404A	£68.00
DAN154		TS-2-(NL)	50	3/8FL x 1/2FL	Internal	R404A	£68.00
DAN175		TZ-2-(N)	-	3/8FL x 1/2ODS	Internal	R407C	£68.00
DAN108		TEX-2-(N)	-	3/8FL x 1/2ODS	External	R22	£134.00
DAN112		TEX-2-(N)	-	3/8FL x 1/2FL	External	R22	£129.00
DAN132		TEN-2-(N)	-	3/8FL x 1/2ODS	External	R134A	£109.00
DAN136		TEN-2-(N)	-	3/8FL x 1/2FL	External	R134A	£106.00
DAN160		TES-2-(N)	-	3/8FL x 1/2ODS	External	R404A	£109.00
DAN162		TES-2-(N)	-	3/8FL x 1/2FL	External	R404A	£106.00
DAN163		TES-2-(NL)	50	3/8FL x 1/2ODS	External	R404A	£135.00
DAN164		TES-2-(NL)	50	3/8FL x 1/2FL	External	R404A	£135.00
DAN180		TEZ-2-(N)	-	3/8FL x 1/2ODS	External	R407C	£109.00
DAN185		TEZ-2-(N)	-	3/8FL x 1/2FL	External	R407C	£106.00
DAN188		TE-2(N)	-	3/8FL x 1/2ODS	External	R407A/F	£106.00
DAN186		T-(N)	-	3/8"Fl x 1/2ODS	Internal	R407A/F	£68.00
DAN187		T-(N)	-	3/8Fl x 1/2Fl	Internal	R407A/F	£68.00
DAN170		TE-2(N)	-	3/8"Fl x 1/2Fl	External	R448/449A	£109.00
DAN171		TE-2(N)	-	3/8Fl x 1/2ODS	External	R448/449A	£107.00
DAN189	none	TE-2(N)	-	3/8Fl x 1/2Fl	External	R407A/F	£109.00
DAN140		T-2(N)	none	3/8Fl x 1/2"Fl	Internal	none	£70.00
DAN141		T-2(N)	none	3/8Fl x 1/2ODS	Internal	none	£70.00
DAN142		TE-2(N)	none	3/8Fl x 1/2Fl	External	none	£112.00
DAN143		TE-2(N)	none	3/8Fl x 1/2ODS	External	none	£116.00
DAN144		T-2(N)	none	3/8Fl x 1/2Fl	Internal	none	£70.00
DAN145		T-2(N)	none	3/8Fl x 1/2ODS	Internal	none	£70.00
DAN146		TE-2(N)	none	3/8Fl x 1/2Fl	External	none	£113.00
DAN147		TE-2(N)	none	3/8Fl x 1/2ODS	External	none	£113.00
DAN168		TS-2(N)	none	3/8Fl x 1/2"Fl	Internal	none	£68.00
DAN169		TS-2(N)	none	3/8Fl x 1/2ODS	Internal	none	£68.00
DAN174		TE-2(NL)	40	3/8"Fl x 1/2ODS	External	R448/449A	£136.00
