Parker EBS balanced port

Name: Parker EBS balanced port
Brand: Parker Sporlan
SKU: 409DC503
Availability: InStock

Plays video

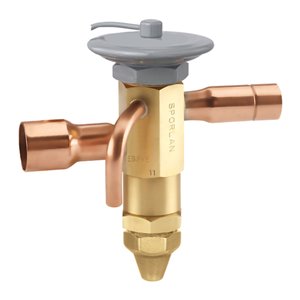

Parker Sporlan Type EBS expansion valve is a brass bar body, externally adjustable valve with ODF solder connections. The thermostatic element is replaceable, and the inlet connection has a permanent 12 mesh strainer.

Performance characteristics:

Type EBS maximum pressure (PSI)
450 Equalizer method
Externally Equalized strainer type 12
Mesh Permanent element 83

CODE	product-model	capacity-range-tons	capacity-range-kw	connections	equalizer	mop-psi	refrigerant	Price
SPTV380	EBSJE-5-C	5	none	5/8x 7/8"	External	-	R134A	£172.00
SPTV382	EBSJE-7-C	7	24.6	5/8x 7/8"	External	-	R134A	£172.00
SPTV384	EBSJE-9-C	9	31.7	7/8x 1.1/8"	External	-	R134A	£228.00
SPTV386	EBSJE-12-C	12	42.2	7/8x 1.3/8"	External	-	R134A	£228.00
SPTV527	EBSVE-15-C	15	52.8	7/8x 1.1/8"	External	-	R407C	£228.00
SPTV521	EBSVE-20-C	20	70.3	7/8x 1.3/8"	External	-	R407C	£224.00
SPTV396	EBSSE-6-C	6	21.1	5/8x 7/8"	External	-	R404A	£172.00
SPTV398	EBSSE-6-ZP	6	21.1	5/8x 7/8"	External	35	R404A	£172.00
SPTV400	EBSSE-7.1/1-C	7.1/2	26.4	5/8x 7/8"	External	-	R404A	£172.00
SPTV402	EBSSE-7.1/2-ZP	7.1/2	26.4	5/8x 7/8"	External	35	R404A	£172.00
SPTV404	EBSSE-10-C	10	35.2	7/8x 1.1/8"	External	-	R404A	£228.00
SPTV406	EBSSE-10-ZP	10	35.2	7/8x 1.1/8"	External	35	R404A	£228.00
SPTV408	EBSSE-13-C	13	45.7	7/8x 1.1/8"	External	-	R404A	£228.00
SPTV410	EBSSE-13-ZP	13	45.7	7/8x 1.3/8"	External	35	R404A	£228.00
SPTV523	EBSVE-11-C	11	38.7	5/8x 7/8"	External	-	R407A/C/F	£172.00
SPTV531	EBSVE-20-C	20	70.3	7/8x 1.3/8"	External	-	R407C	£228.00

Reviews

There are no reviews yet.

Be the first to review “Parker EBS balanced port”

Price list

product-model	capacity-range-tons	capacity-range-kw	connections	equalizer	mop-psi	refrigerant	Price
EBSJE-5-C	5	none	5/8x 7/8"	External	-	R134A	£172.00
EBSJE-7-C	7	24.6	5/8x 7/8"	External	-	R134A	£172.00
EBSJE-9-C	9	31.7	7/8x 1.1/8"	External	-	R134A	£228.00
EBSJE-12-C	12	42.2	7/8x 1.3/8"	External	-	R134A	£228.00
EBSVE-15-C	15	52.8	7/8x 1.1/8"	External	-	R407C	£228.00
EBSVE-20-C	20	70.3	7/8x 1.3/8"	External	-	R407C	£224.00
EBSSE-6-C	6	21.1	5/8x 7/8"	External	-	R404A	£172.00
EBSSE-6-ZP	6	21.1	5/8x 7/8"	External	35	R404A	£172.00
EBSSE-7.1/1-C	7.1/2	26.4	5/8x 7/8"	External	-	R404A	£172.00
EBSSE-7.1/2-ZP	7.1/2	26.4	5/8x 7/8"	External	35	R404A	£172.00
EBSSE-10-C	10	35.2	7/8x 1.1/8"	External	-	R404A	£228.00
EBSSE-10-ZP	10	35.2	7/8x 1.1/8"	External	35	R404A	£228.00
EBSSE-13-C	13	45.7	7/8x 1.1/8"	External	-	R404A	£228.00
EBSSE-13-ZP	13	45.7	7/8x 1.3/8"	External	35	R404A	£228.00
EBSVE-11-C	11	38.7	5/8x 7/8"	External	-	R407A/C/F	£172.00
EBSVE-20-C	20	70.3	7/8x 1.3/8"	External	-	R407C	£228.00
