3mm fin spacing

Name: 3mm fin spacing
Brand: ECO
SKU: 30145F06
Availability: InStock

Plays video

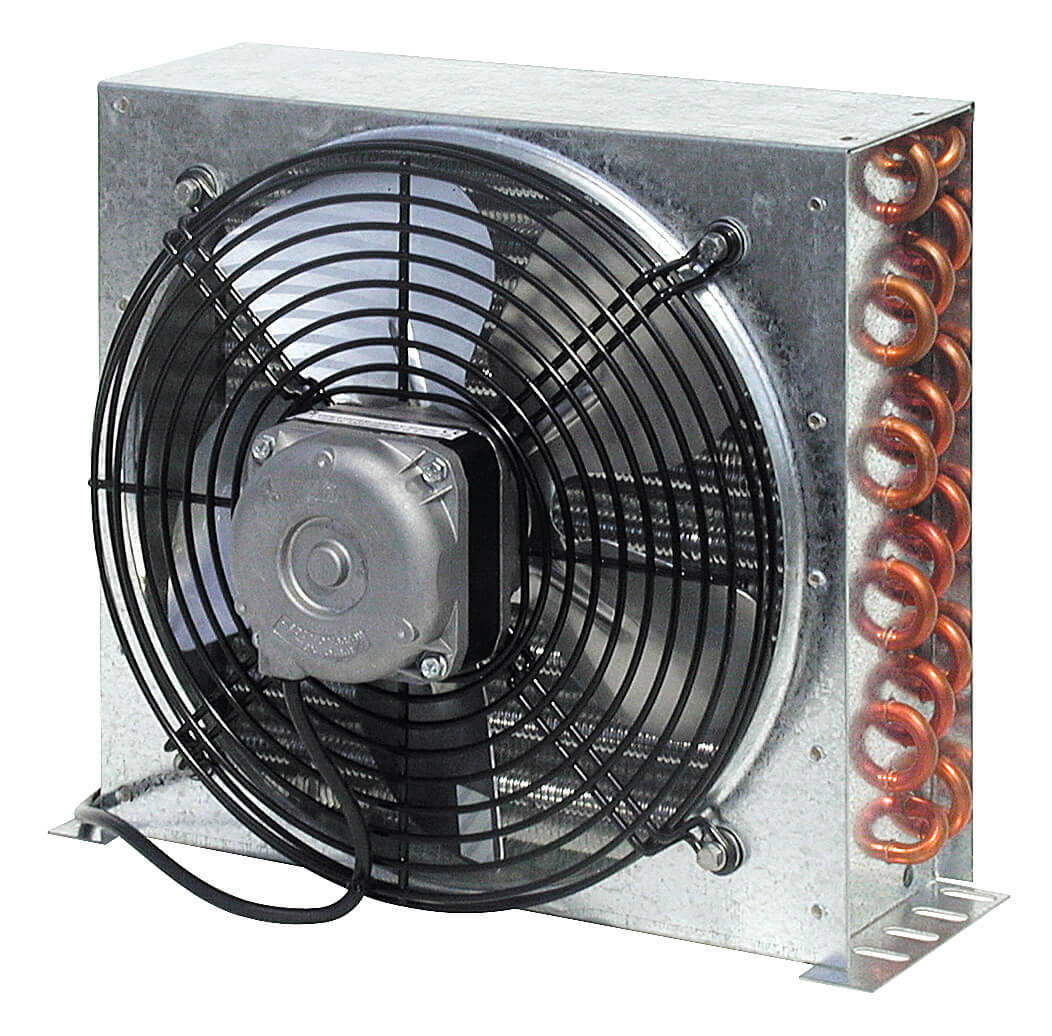

The condenser of the LCE range are particularly suitable for installation in small condensing units.

The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants. For the entire range 3.00 mm finn spacing. The fan motors for the standard version are equipped with suction fan and have the following feature: – Single phase 230V/1/50 Hz shade pole – Class B insulation – Epoxy painted iron or polymide fan guards – Supplied with 1000 mm electric cable – Operating temp. -30°C a +40 °C

CODE	catalogue	product-model	capacity-15ktd	compressor-size-cc-hbp	compressor-size-cc-lbp	dimensions-incl-fan-motor-d-mm	dimensions-incl-fan-motor-h-mm	dimensions-incl-fan-motor-w-mm	fan-size	noise-level	Price
ECC100		LCE 036	362	2	5	138	192	210	172	31	£107.00
ECC105		LCE 045	452	3	6	164	192	210	172	31	£119.00
ECC110	none	LCE 048	484	3	7	139	220	240	200	33	£115.00
ECC115		LCE 057	566	4	8	164	192	210	172	31	£127.00
ECC120		LCE 063	630	5	9	165	220	240	200	33	£124.00
ECC125		LCE 066	659	5	9	140	255	270	230	33	£121.00
ECC130		LCE 077	765	6	11	165	220	240	200	33	£137.00
ECC135		LCE 087	870	7	13	164	255	270	230	33	£136.00
ECC140		LCE 089	887	7	13	140	280	300	254	37	£136.00
ECC145		LCE 107	1066	8	15	164	255	270	230	33	£146.00
ECC150		LCE 117	1169	9	16	166	280	300	254	37	£148.00
ECC155		LCE 140	1403	11	20	166	280	300	254	37	£163.00
ECC160		LCE 168	1680	13	24	166	305	360	254	37	£181.00
ECC165		LCE 179	1790	14	26	199	320	380	300	44	£193.00
ECC170		LCE 213	2126	17	28	199	320	380	300	44	£210.00
ECC175		LCE 234	2340	18	34	213	320	380	300	44	£244.00

Reviews

There are no reviews yet.

Be the first to review “3mm fin spacing”

Price list

catalogue	product-model	capacity-15ktd	compressor-size-cc-hbp	compressor-size-cc-lbp	dimensions-incl-fan-motor-d-mm	dimensions-incl-fan-motor-h-mm	dimensions-incl-fan-motor-w-mm	fan-size	noise-level	Price
	LCE 036	362	2	5	138	192	210	172	31	£107.00
	LCE 045	452	3	6	164	192	210	172	31	£119.00
none	LCE 048	484	3	7	139	220	240	200	33	£115.00
	LCE 057	566	4	8	164	192	210	172	31	£127.00
	LCE 063	630	5	9	165	220	240	200	33	£124.00
	LCE 066	659	5	9	140	255	270	230	33	£121.00
	LCE 077	765	6	11	165	220	240	200	33	£137.00
	LCE 087	870	7	13	164	255	270	230	33	£136.00
	LCE 089	887	7	13	140	280	300	254	37	£136.00
	LCE 107	1066	8	15	164	255	270	230	33	£146.00
	LCE 117	1169	9	16	166	280	300	254	37	£148.00
	LCE 140	1403	11	20	166	280	300	254	37	£163.00
	LCE 168	1680	13	24	166	305	360	254	37	£181.00
	LCE 179	1790	14	26	199	320	380	300	44	£193.00
	LCE 213	2126	17	28	199	320	380	300	44	£210.00
	LCE 234	2340	18	34	213	320	380	300	44	£244.00
