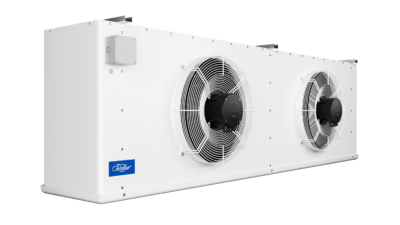

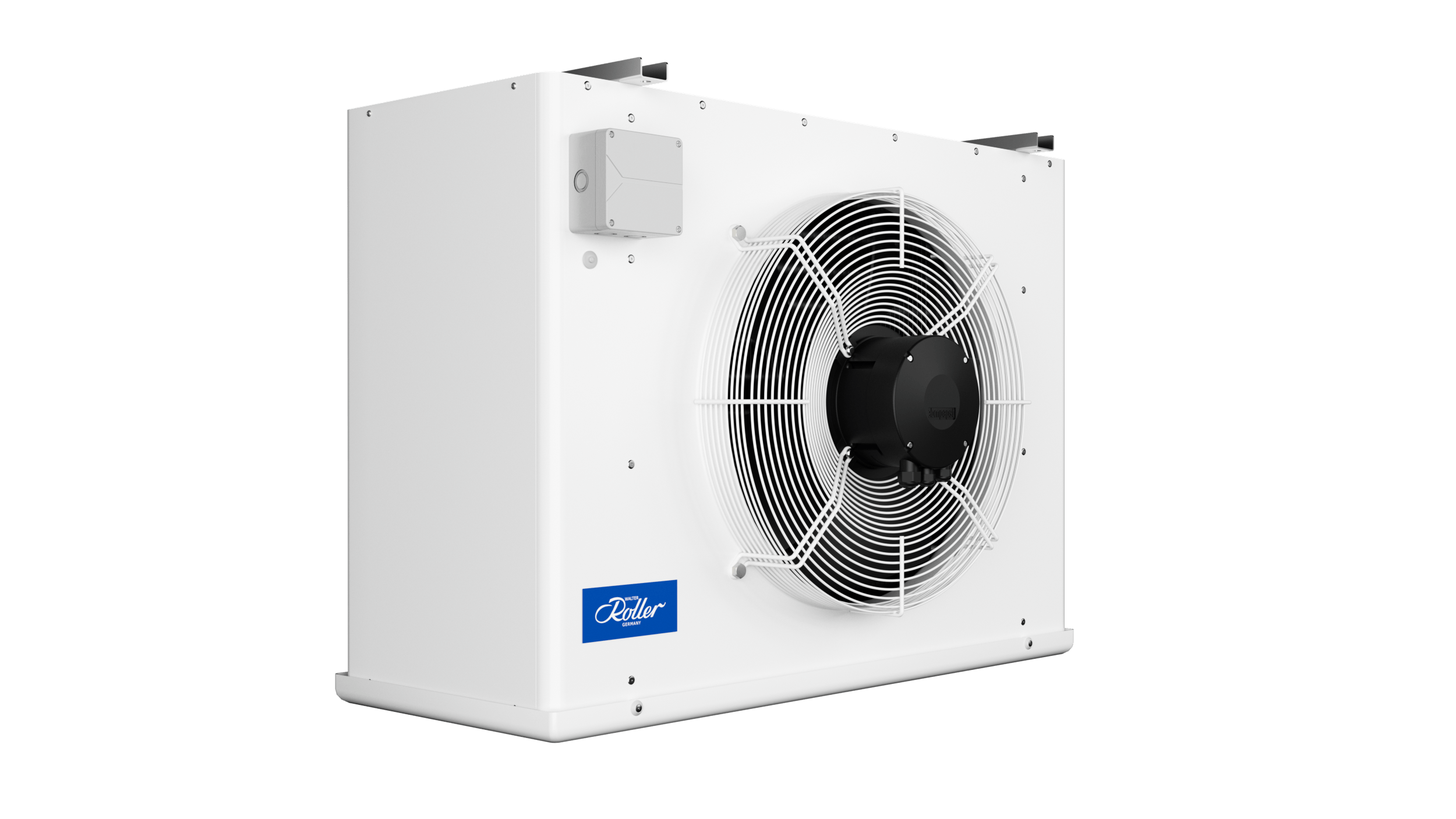

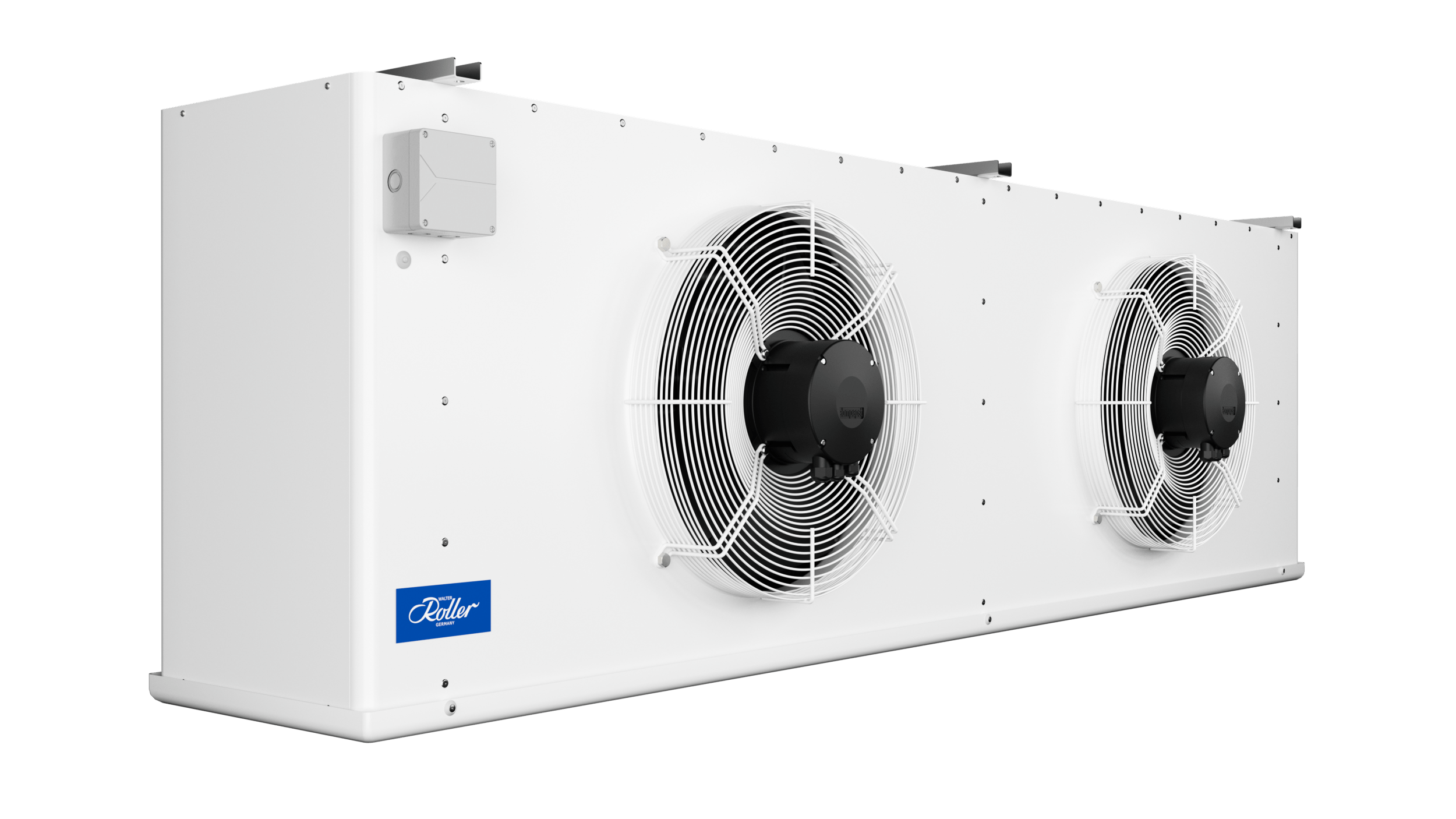

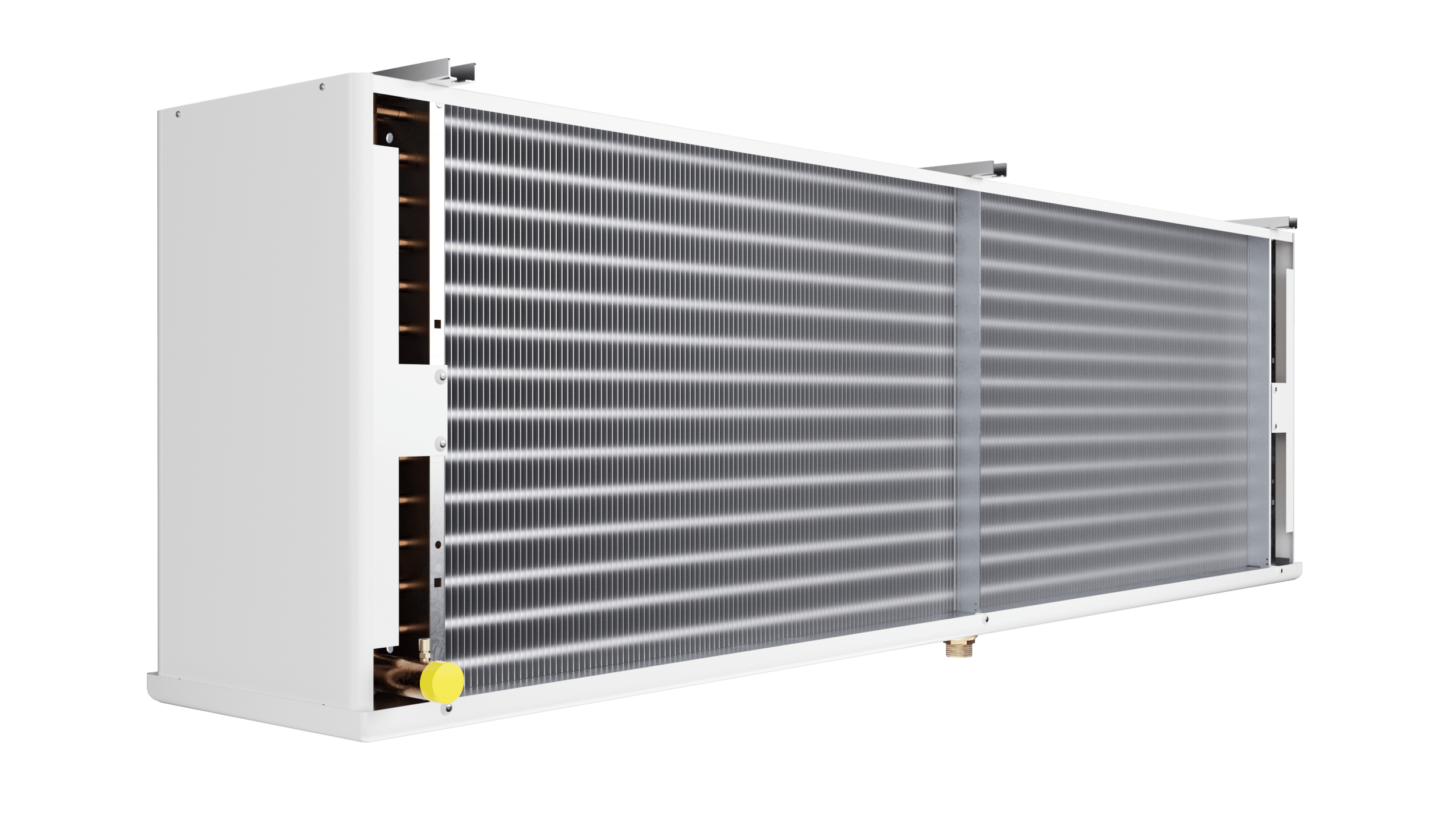

Walter Roller HVST Evaporator 10.0 mm – ED

Thanks to its compact design, the Walter Roller HVST is a highly efficient air cooler is particularly suitable for commercial and industrial cold stores and low-temperature storage rooms with narrow aisles. With its high air flow volume and optional air streamer, even very long shelving aisles can be uniformly cooled.

Walter Roller HVST Evaporator features:

• Cubic air cooler for demanding cooling and deep freezing requirements
• Particularly suitable for unpackaged goods stored for long periods of time in environments with a high air humidity
• Low moisture loss thanks to Roller's highly efficient aligned tube system
• Compact design specially for use in narrow aisles
• High efficiency thanks to EC fan technology as standard and an effective defrosting system

HVST Evaporator Spec:

• Cooling capacity from 0.5 to 25 kW
• Temperature range: HVS: 0 ° 50 °C / HVST: -35 ° 20 °C
• Fin spacings 4.5 / 7 / 10 / 12 mm
• Defrosting: electric (HVST), optional: Brine, hot gas, water sprinklers, splash plates
• Operating pressure up to 25 bar
