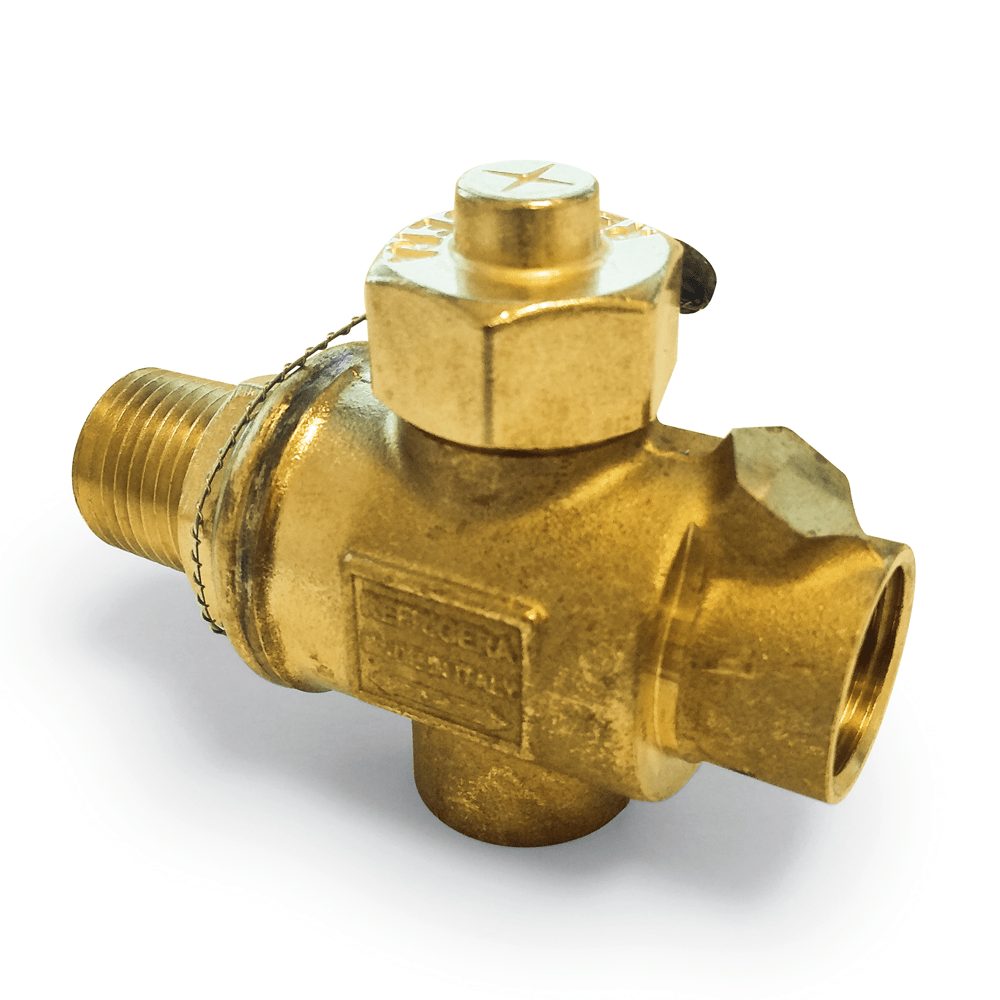

Hybrid service valve

A hybrid service valve designed to fit between a liquid receiver and pressure relief valve. This enables the isolation of the pressure relief valve for servicing or replacement without the need to reclaim the refrigerant in the system. Available with 1/4" MPT x 1/4" FPT or 1/2" MPT x 1/2" FPT connections.

Construction material:

• Brass.
• Temperature range: -4°C to +150°C
• Maximum working pressure: 140barg.

Suitable for use with our Refrigera pressure relief valve models:

¼” MPT x ¼” FPT (BMUL407) Hybrid service valve:

BMUL420           17.5barg             ¼” MPT  to atmosphere

BMUL450           27.5barg             ¼” MPT to ½” BSPP

BMUL452           27.5barg             ¼” MPT to atmosphere

BMUL453           28.0barg             ¼” MPT to atmosphere

½” MPT x ½” FPT (BMUL408) Hybrid service valve:

BMUL430           17.5barg             ½” MPT to atmosphere

BMUL442           24.8barg             ½” MPT to atmosphere

BMUL460           27.5barg             ½”MPT to ¾”BSPP

BMUL462           27.5barg             ½” MPT to atmosphere

BMUL470           45.0brag             ½” MPT to ¾” BSPP

BMUL472           45.0barg             ½” MPT to atmosphere

BMUL492           27.0barg             ½” MPT to ¾” BSPP
