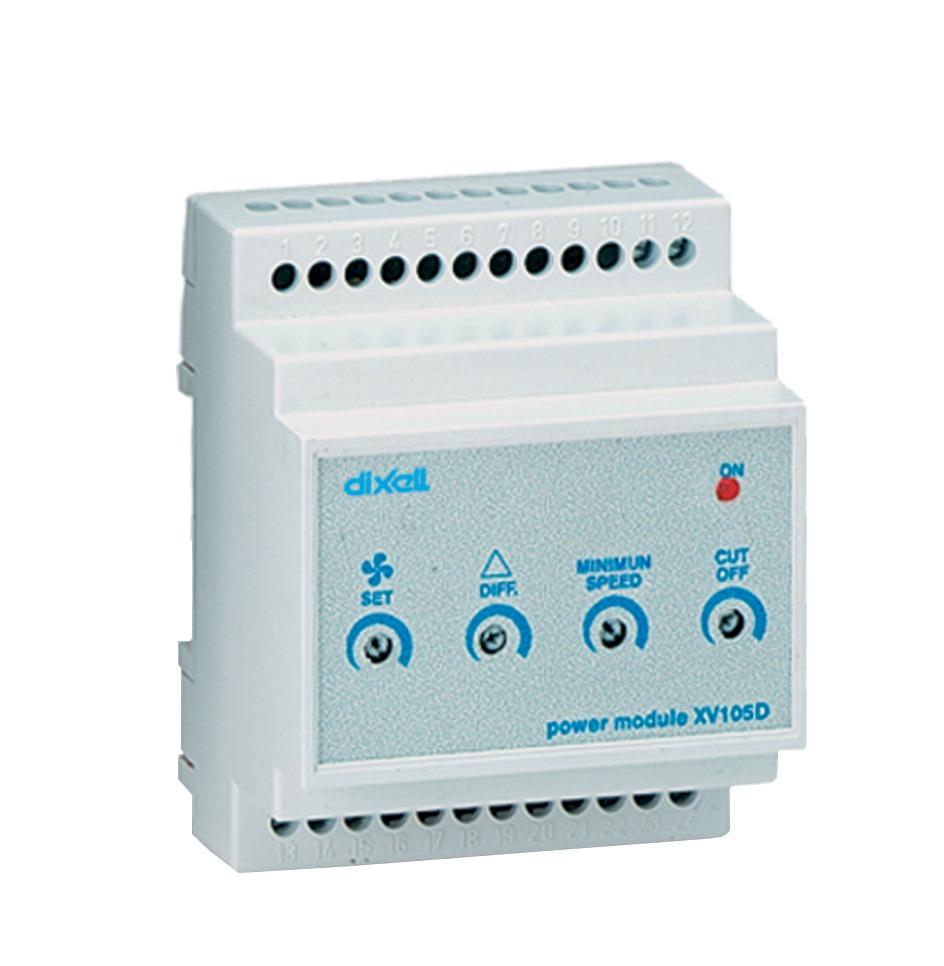

Copeland – Dixell XV105D

The Copeland – Dixell XV105D fan speed controller designed for single-phase a.c. motors up to 500w, with input for ntc, 4÷20ma, 0÷1v or 0÷10v.

Main features:

• Chopped phase speed controllers to control pressure and temperature in refrigerating systems including cooling fans
• Inputs for regulation by temperature and pressure
• Direct or inverse action for condenser or evaporator fans
• Cut off, minimum speed and max speed at start up functions
• Trigger output for managing another module
• Slave models managed by the input signal (for XV100)
• Compatible with Dixell controllers equipped with PWM, 4÷20mA, 0÷1V/0÷10V outputs like the iPro, XC600, XM600, … series
• 1VA max power absorption
• Measurement range: 0÷100%
