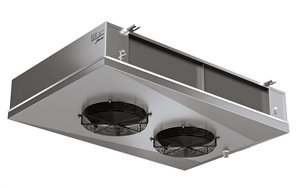

Eco AGD Evaporator 4.0 mm A2L – ED

ECO AGD  dual discharge unit coolers for installations that use the latest generation of A2L low GWP refrigerants. This range is specifically designed for limited height rooms used for preservation, preparation and handling of fresh or frozen foodstuffs.
Range consist of 50 customizable models
According to the room temperature the range is divided as follows:

• AGD 3 for high temperatures (≥ 5 °C) with 3 mm fin spacing, designed for work rooms with no possibility of ice/frost formation on fins;
• AGD 4 for medium temperatures (≥ +1 °C) with 4 mm fin spacing;
• AGD 49 for medium temperatures (≥ –15 °C) with 4,5/9 mm staggered fin spacing;
• AGD 7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended.

ECO AGD Evaporator applications: Reach-in cabinets Small cold rooms Walk-in cabinets Low ceiling commercial refrigeration cold rooms Food processing rooms (fresh and perishable goods, seafood, meat)

Capacity Range:

• R1234yf: from 0,52 to 16,16 kW
• R454C: from 0,48 to 14,82 kW
